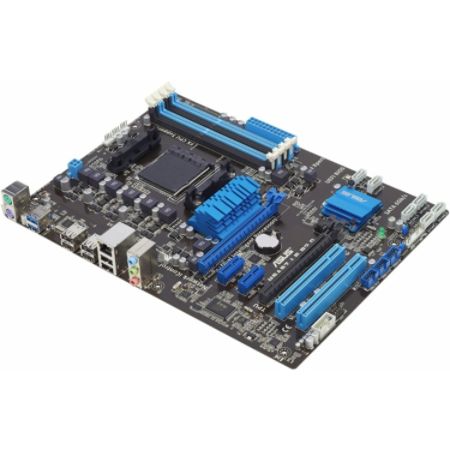

Asus M5A97 LE R2.0 Desktop Motherboard - AMD 970 Chipset - Socket AM3+ Item # 651133
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
651133
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
ASUS M5A97 LE features USB 3.0 Boost - faster USB 3.0 transmission with UASP. ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol). With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to an already impressive fast USB 3.0 transfer speed.
Product Details
| Item # | 651133 |
| Manufacturer # | PP9601 |
| Number of SATA Interfaces | 6 |
| Number of PS/2 Ports | 2 |
| Hardware Features | C.P.R. (CPU Parameter Recall), AMD Cool 'n' Quiet Technology, jack retasking, ASUS Q-Design, ASUS 4+2 Phase Power Design, ASUS EZ DIY, Q-Slot, All-Solid Capacitor motherboard Design, ASUS Noise Filter, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Precision Tweaker 2, ASUS Fan Xpert, ASUS TurboV, ASUS TPU (TurboV Processing Unit), Fanless Design Heatsink, USB 3.0 Boost, AMD Quad CrossFireX technology support, ASUS Network iControl |
| Onboard LEDs Header | Yes |
| Power Supply Supported | ATX12V |
| Multi GPU Supported | CrossFireX |
| Memory Speed Supported | 2.13 GHz (O.C.); 1.87 GHz; 1.60 GHz; 1.33 GHz; 1.07 GHz |
| Sleep / Wake Up | Wake on LAN (WOL), wake on ring (WOR) |
| Compatible Processors | Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Athlon X2, Sempron X2, Phenom II X4, Phenom II X6, FX ( supports CPUs with up to 8 cores, Maximum TDP 140 Watt ) |
| Certifications & Standards | CE; FCC; ErP Ready |
| Number of Network (RJ-45) Ports | 1 |
| Internal Interfaces | 6 x USB 2.0 ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header |
| Registered or Buffered | Unbuffered |
| Audio Line In | Yes |
| Storage Interfaces | AMD SB950 : SATA-600 - connector(s): 6 x 7pin Serial ATA - 6 device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 4 |
| Total Processor Supported | 1 |
| 64-bit Processing | Yes |
| Bus Clock | 1800 MHz, 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz, 2133 MHz |
| Max Processors Qty | 1 |
| RAID Supported | Yes |
| brand name | Asus |
| Audio Channels | 7.1 |
| Network Controller | Realtek RTL8111F |
| Processor Technology | Cool'n'Quiet Technology |
| Number of USB 2.0 Ports | 6 |
| PS/2 Port | Yes |
| Memory Form Factor | UDIMM |
| Processor Socket | Socket AM3+ |
| Sound Controller Manufacturer | Realtek |
| Chipset Model | 970 |
| Onboard Video | No |
| PCI Express Standard | PCI Express 2.0 |
| Number of PCI Slots | 2 |
| Total Number of Onboard USB Ports | 6 |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| RAID Levels | 0; 1; 5; 1+0 |
| Processor Supported | FX; Athlon II; Phenom II; Sempron; Athlon X2; Athlon II X2; Athlon II X3; Athlon II X4; Phenom II X2; Phenom II X3; Phenom II X4; Phenom II X6; Sempron X2 |
| BIOS Features | DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ASUS O.C. Profile, ACPI 2.0a support, ASUS EFI BIOS, UEFI BIOS, SMBIOS 2.7 support |
| height | 2.3in. |
| Total Number of USB Ports | 8 |
| Number of PCI Express x1 Slots | 2 |
| Onboard Audio Header | Yes |
| width | 12 in |
| package contents | M5A97 LE R2.0 Desktop Motherboard; 2 x Serial ATA 6.0Gb/s Cables; 1 x I/O Shield; 1 x User Manual; Support DVD |
| Number of Memory Slots | 4 |
| Sound Controller Model | ALC887 |
| depth | 9 in |
| Product Name | M5A97 LE R2.0 Desktop Motherboard |
| Audio Codec | Realtek ALC887 |
| HyperTransport Speed | 4.80 GT/s |
| manufacturer | ASUS Computer International |
| Data Bus Transfer Rate | 4.8 GT/s |
| Audio Line Out | Yes |
| Maximum Memory | 32 GB |
| Max Size | 32 GB |
| Supported RAM Integrity Check | Non-ECC |
| controller type | Serial ATA/600 |
| Number of Onboard USB 2.0 Ports | 6 |
| Gigabit Ethernet | Yes |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Microphone Port | Yes |
| Onboard Serial Header | Yes |
| Memory Standard | DDR3-2133/PC3-17000 (O.C.); DDR3-1866/PC3-15000; DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
| Number of Total Expansion Slots | 6 |
| Chipset Manufacturer | AMD |
| form factor | ATX |
| Memory Technology | DDR3 SDRAM |
| warranty length | 3-year limited |
| Onboard S/PDIF Header | Yes |
| model name | M5A97 LE R2.0 |
| Show More ▾ |
Customer Reviews
From the Manufacturer|
SuperSpeed USB (USB 3.1 Gen 1)
-
SuperSpeed USB delivers effortless audio/video streaming, music and photos to your home, office, car, and anywhere in between. SuperSpeed USB transfers data up to 5Gbps, up to 10X faster than Hi-Speed USB. SuperSpeed USB works with all USB products. It’s backward compatible with USB 2.0.
USB 3.1 Specification
The USB 3.1 specification includes definitions for both 5Gbps (Gen 1) and 10Gbps (Gen 2) data rates:
- USB 3.1 Gen 1 – SuperSpeed USB (Products signal at 5Gbps)
- USB 3.1 Gen 2 – SuperSpeed USB 10Gbps (products signal at 10Gbps)
Note: The terms USB 3.1 Gen 1 and USB 3.0 are synonymous
-
What the Logos Mean to You
To use the SuperSpeed USB logo and icons, products must pass USB-IF certification testing to ensure they are built to meet the USB specifications and interoperate with other USB devices. This means you can be confident that Certified USB products will work with other Certified USB products. This content is being provided for educational purposes only and does not imply that the associated product has been certified. To confirm if a device has been certified, visit the www.usb.org website or look for the Certified SuperSpeed USB logo on the product or product packaging.
